Product details
Photovoltaic frequency converters are composed of solar module arrays, combiner boxes, liquid level switches, solar pumps, etc., aiming to provide solutions for areas with water scarcity, no electricity, or uncertain power supply.
The system does not have batteries and is completely powered by solar energy, achieving cost-effectiveness.
You can prepare a suitable water tank to store water for future use. The system adopts efficient AC submersible/surface pumps to meet different requirements. By using maximum power point tracking technology, the pump's operation is automatically adjusted to achieve the maximum power generation of the system. Adopting automatic control, such as automatic starting and closing in the morning and evening, automatic closing when the tank is full, and automatic closing when there is water shortage in the well. Protective measures have been taken for pump blockage, three-phase balance, etc., which have extended the service life of the pump and controller.
Technical Parameter
Product Name: Photovoltaic Frequency Converter
Power specifications: 0.75KW~45KW
Rated voltage: 380V
Maximum input voltage: 450V
Minimum input voltage: 180V
Suggested voltage: 280VDC-360VDC
Input voltage: 220/230/240V AV (+15%), single-phase
Rated output power: 0.75KW~5.5KW

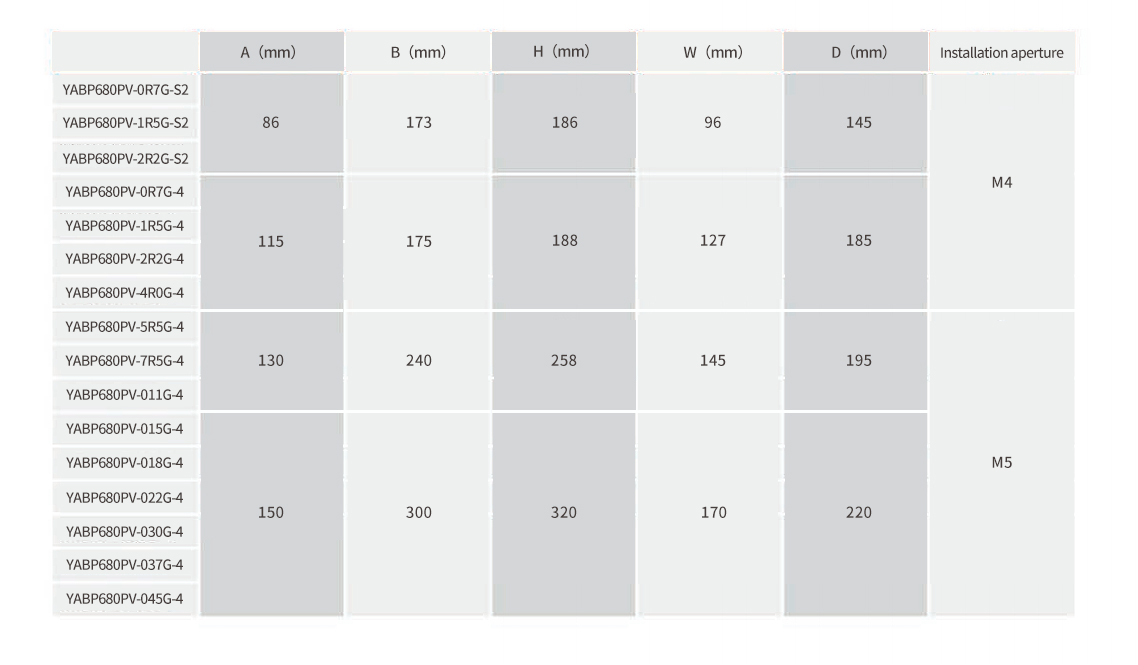

Appearance and installation dimensions (unit: mm)
