Technical Parameter

• Product name: Intelligent bypass soft starter
• Power supply voltage: 380V/660V (± 15%)
• Starting current limit: 0.5~5 times
• Slope descent time: 0-60S
• Soft start base voltage: 30% Ue~80% Ue, can be set on site
• Jump start time: 0.1S
• Applicable motor: squirrel cage three-phase asynchronous motor
• Starting frequency: determined based on load conditions
• Cooling method: IP20 or higher level can be negotiated
• Environmental requirements: If the altitude exceeds 1000 meters, the capacity should be reduced accordingly. For every 100 meters increase above 1000 meters, the current should be reduced by 0.5%; The relative humidity should not exceed 95% when the ambient temperature is between -10 ℃ and+40 ℃; No condensation, no flammable and explosive gases, no conductive dust, in a well ventilated indoor environment

Working principle

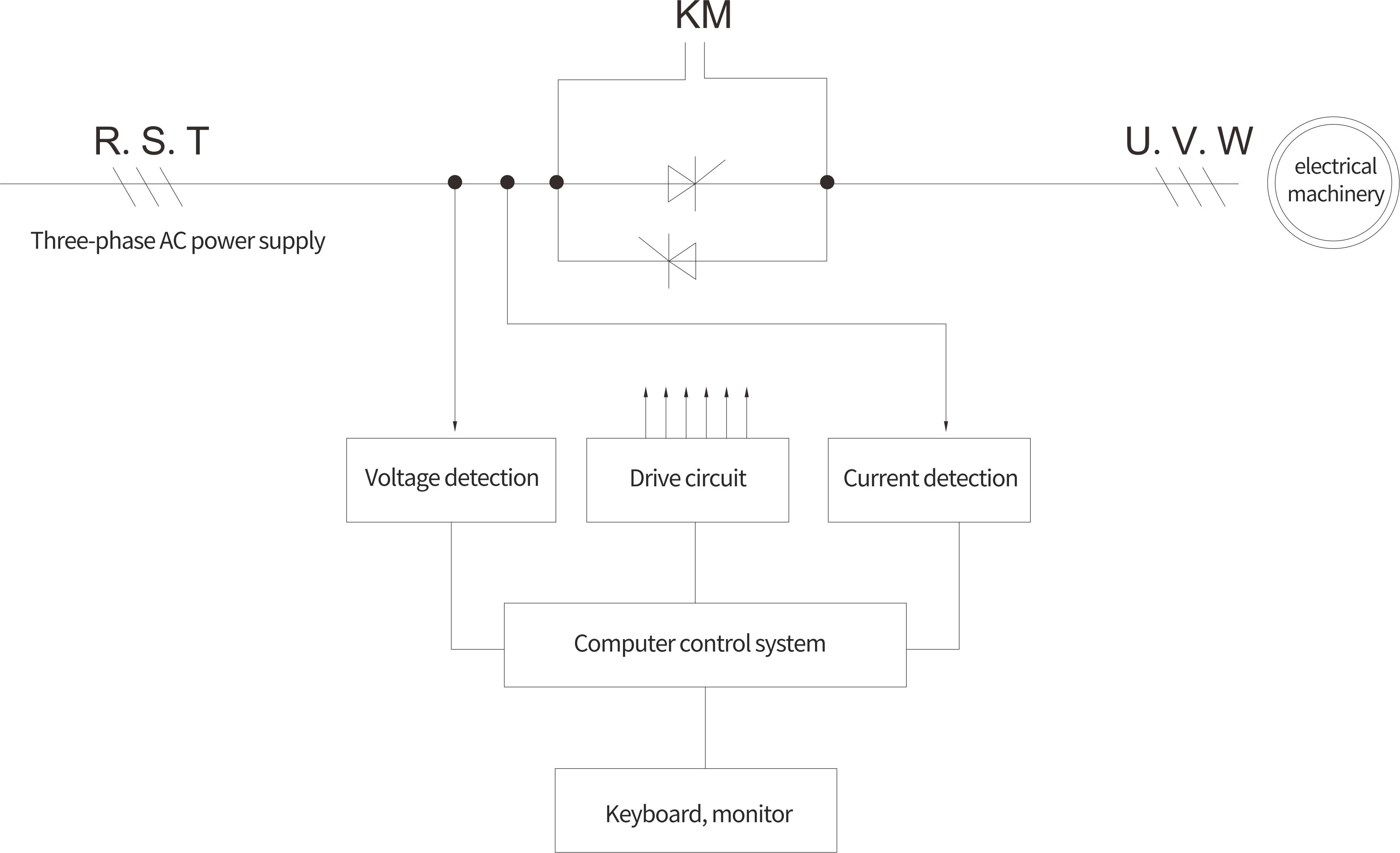

• The YA5000 series motor soft starter adopts three pairs of reverse parallel quality tubes connected in series to the stator circuit of the AC motor. By using the electronic switch function of the quality tubes, the triggering angle of the tubes is controlled by a microprocessor to change the degree of opening of the tubes. Therefore, the input voltage of the AC motor is changed to achieve the purpose of controlling the soft start of the AC motor. When the soft starter output reaches the rated power, the three-phase bypass contactor KM is automatically controlled to close through the bypass controller signal, and the AC motor is put into operation in the grid, as shown in the following figure

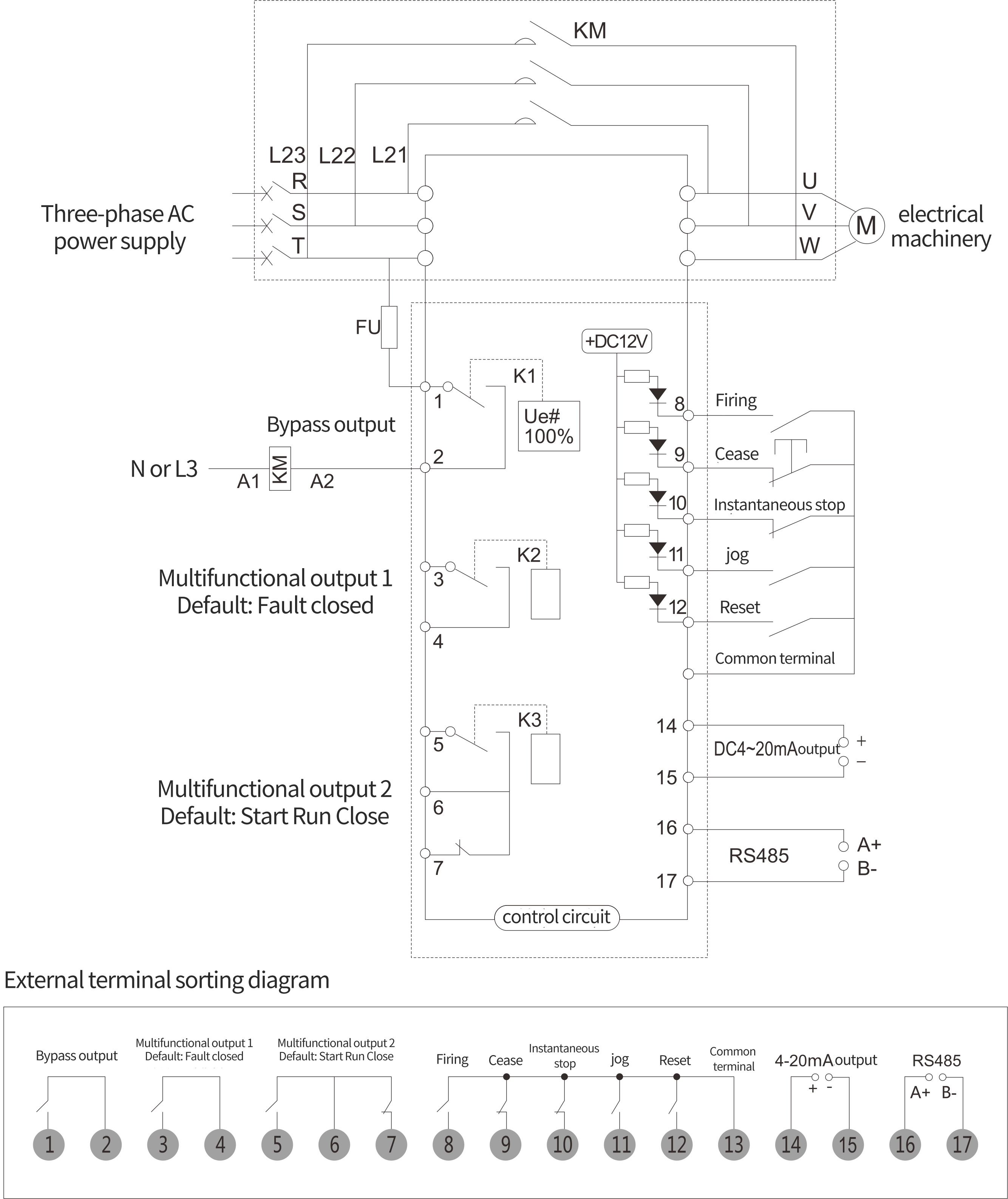

Wiring demonstration

Appearance and installation dimensions (unit: mm)

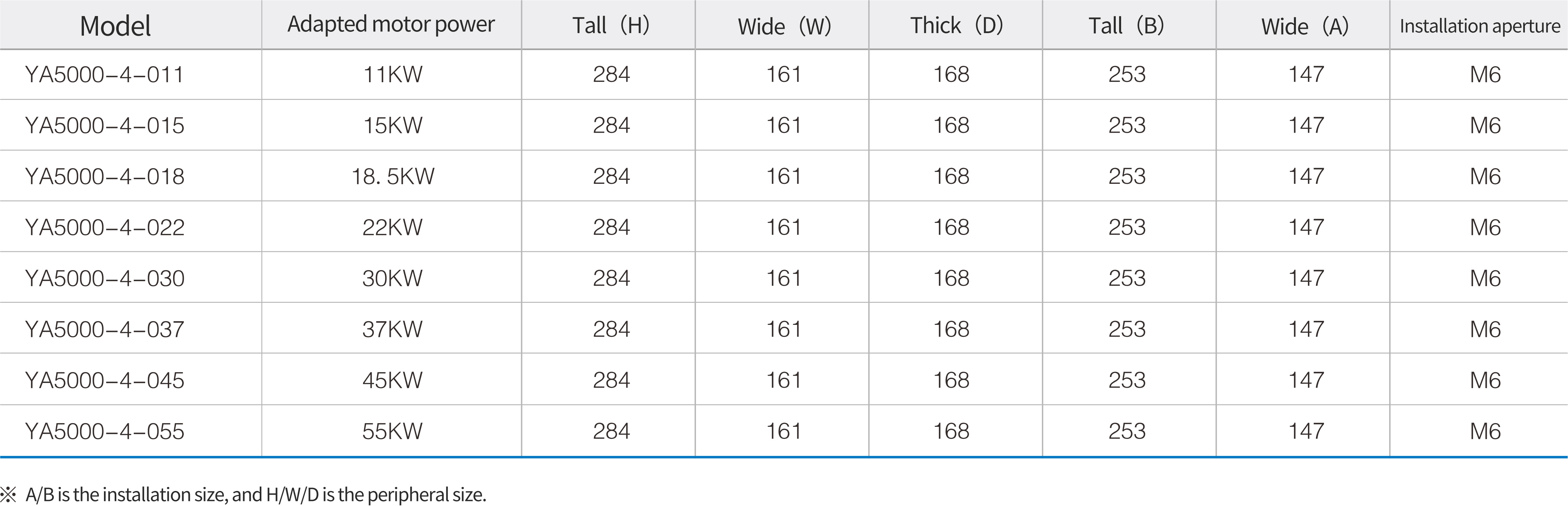

• 11~55KW bypass soft starter external dimensions

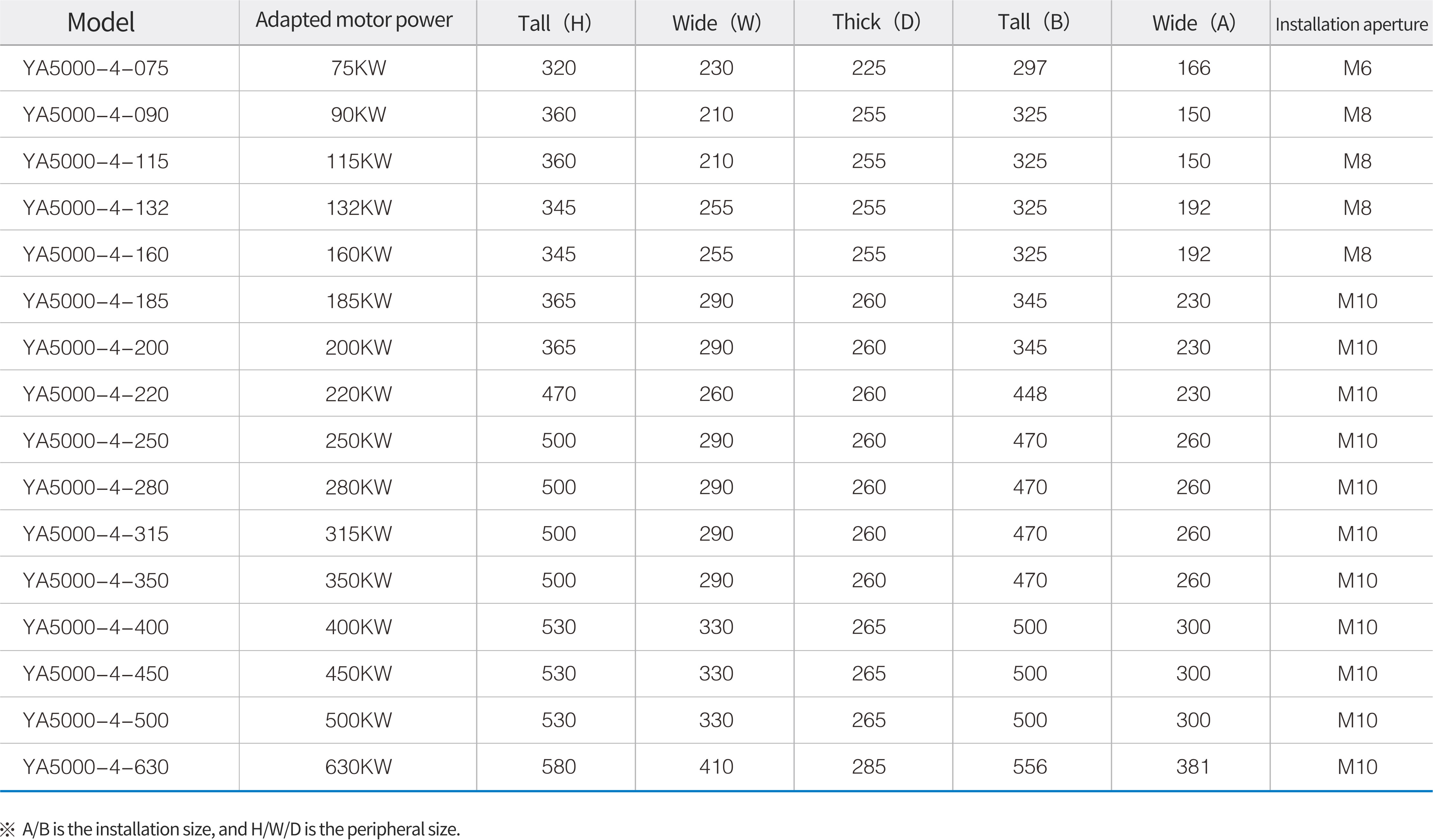

• External dimensions of 75~630KW bypass soft starter
